Electric Servo Drive Injection Molding Machine
Electric Servo Drive Injection Molding Machine
Small Size Machine
Model: J30ADS, J50ADS, J80ADS, J100ADS, J130ADS, J180ADS
Features
< AD Satisfaction > Satisfy all your Requirements
1. Energy Savings, Eco mode
2. Molding Support, Memo of molding conditions, Instruction Manual Stored in System
3. Preventative maintenance, Predictive maintenance
4. Customized I/O Function
|

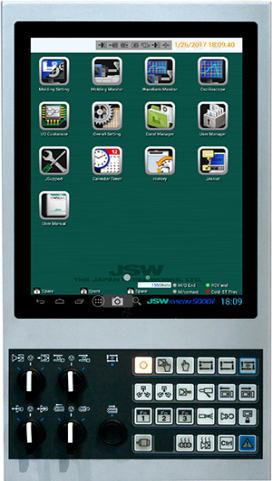

SYSCOM5000i external appearance |

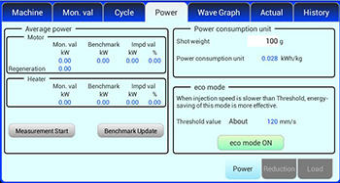

Eco mode

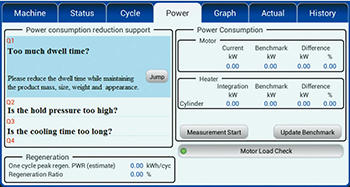

Energy Savings |
< AD Smart > New controller SYSCOM5000i
1. Functions Fully Realized through Simple Navigation System
2. User-friendly screen configuration
3. IoT by NET100 system (option)
|

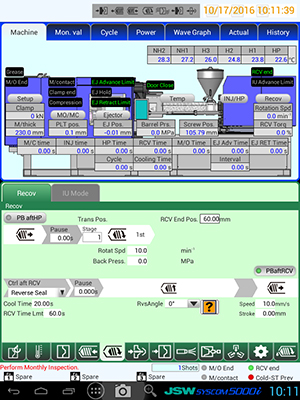

SYSCOM5000i screen |

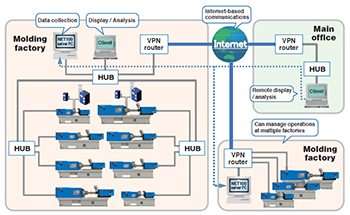

IoT(NET100) |
< AD Strong > Innovated High rigidity clamping unit,Clamping control
1. Clamping unit for variety of molds
2. Uniformity of the clamping force "Flat press platen"
3. Expanded mountable mold thickness and width
4. New mold protection function
5. Clamping Force Feedback Control (option)
|

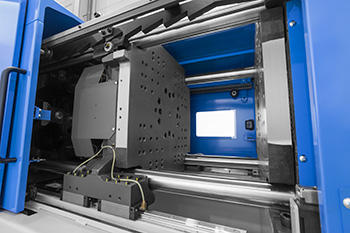

Clamping unit with high-precision linear guide |
New mold protection function |
< AD Stable > Original High Accuracy Injection/ Recovery Control and Flexibility
1. JSW's Original High Accuracy Volume Control
2. Rich injection unit
3. Various Holding Pressure Settings
4. Variation of screws
|
Select mode |
Control |
Improvements |
|
IVSH |
Position changeover |
- |
|
IVSL |
Speed transfer |
Less variation when filling |
|
IPS |
Pressure transfer |
Less variation when filling |
|
EXT |
External signal selection |
Pressure within the mold can be controlled (selected) by the user |
|
Waft contorol1 |
Constant control of |
Flow extension,improvements in filling balance,pressure reduction |
|
Waft contorol2 |
Constant control of the cushion |
Flow extension,improvements in filling balance,pressure reduction |
Variation of change over settings
|
Name |
Shape |
Purpose |
|
GP21 |
Single flight |
JSW standard screws for use with all general-purpose resins |
|
M7 |
Double flight |
Compatible with both high-cycle molding and high kneading |
|
M2K |
Double flight |
Used with optical resin (PC,PMMA),polyvinyl chloride resin(H-PVC)molding |
|
HP |
Double flight + mixing piece |
Reduces color unevenness when using highly concentrated dry colors or master batches |
|
CL |
Specially shaped flight |
Resin burn reduction |
|
VP |
Specially shaped flight |
Prevents resin burns, contamination, and gas caused by excessive shearing |
Variation of screws
