Rotary vertical injection molding machine
Download the product files
-

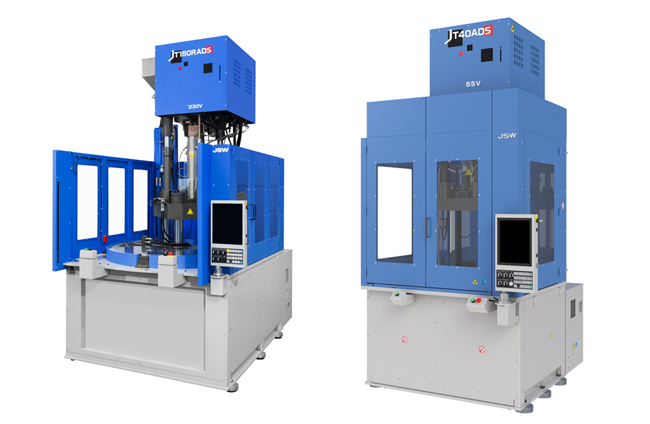

Rotary vertical injection molding machine
Model：JT20RADS, JT40RADS, JT70RADS, JT100RADS, JT150RADS, JT220RADS
Features
＜AD Small & strong＞Compact design, yet providing maximum performance
1. The optimized table height greatly improves the workability of inserts and setups.
2. More secure and stable mold locking device.
3. The daylight and table outer diameter have been expanded to accommodate a wide range of larger molds.
4. By reducing the machine height and installation area, the degree of freedom in layout within the factory is also increased.
|
Model |
JT20R | JT40R | JR70R | JT100R | JT150R | JT220R | |
| Workbench height(mm) | AD series | 884 | 889 | 995 | 1077 | 1198 | 1470 |
| ADS series | 795 | 800 | 971 | 993 | 1173 | 1387 | |
Workbench height comparison table
| Model | JT20R | JT40R | JT70R | JT100R | JT150R | JT220R | |
| Template spacing(mm) | AD series | 430 | 470 | 550 | 600 | 650 | 800 |
| ADS series | 430 | 490 | 550 | 640 | 710 | 850 | |
Template spacing comparison table
| Model | JT20R | JT40R | JT70R | JT100R | JT150R | JT220R | |
| Machine width (mm) | AD series | 1385 | 1385 | 1405 | 1710 | 1900 | 1980 |
| ADS series | 1220 | 1220 | 1400 | 1600 | 1800 | 1960 | |
Machine width comparison table
＜AD Stable＞ Ultimate Stability
1. JSW original high precision measurement control.
2. Multiple injection molding unit combinations.
3. Reduce heater energy consumption.
4. Multiple screw barrels (Optional accessory: PPS/PA dedicated screw barrel).
＜AD Satisfaction＞The application to satisfy various needs
1. Simple operation and increased functions.2. Convenient picture composition.
3. Further save motor energy consumption.
4. Standard rotary machine unique 2 conditions of injection function.
5. Reduce the workload of operators and promote efficient work.
＜AD Smart＞IoT solution [J-Wise®]
1. Centralized monitoring System NET100 (optional).2. Inspection and maintenance function to prevent unexpected machine stop.
3. Molding assist function that reduces the load on the operator.
4. Production automation system.
