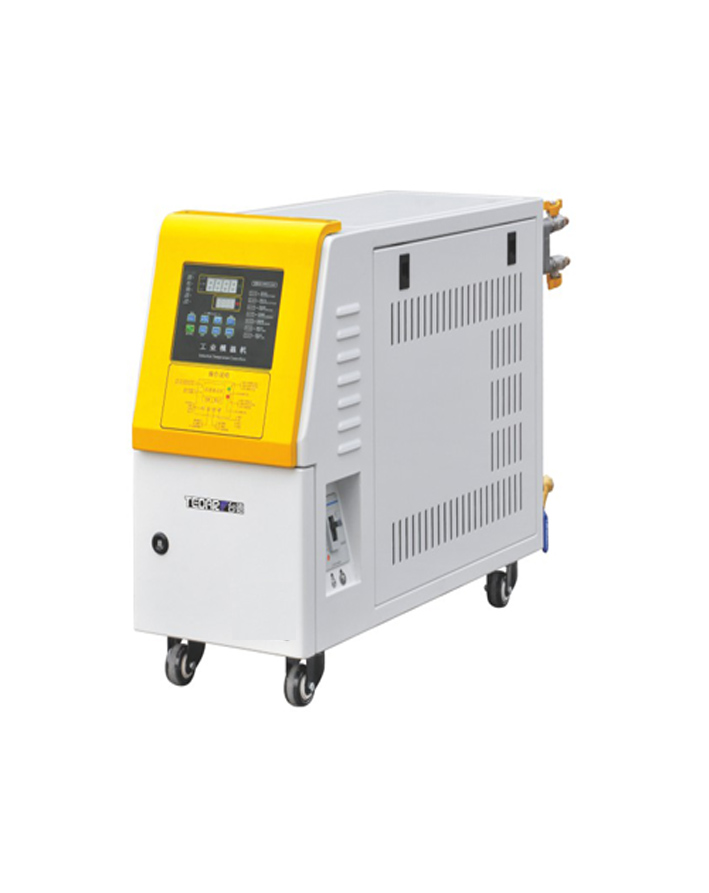

Mould Temperature Controller
- Electric control box and machine are separated, its can obtain good insulation effect, so that be able to extend the useful duration of the electric parts.
- Hot water piping system boot time with automatic replenishment and removal function of the internal air piping.
- All used import heat pumps, the working condition (Flow, Pressure) higher 35% than other brands, and high efficiency.
- Hot water piping is made as one structure formation, extended until to 4 Inlet and Outlet separation tube, water leakage does not occur.
- Four passes of water inlet and outlet are internal installed to keep pleasant looking except the ball valves are outside installed.
- Rapid heating and cooling, temperature stability.
- Complete with safety protection and error indication systems, easy operation.
- Power source phase deficient protection
- Circuit breaker
- Pump reversal protecting and indicating lamp pump over
- Load protecting and indicating lamp
- Over heat protecting and indicating lamp
- Cooling compulsory
- Temperature deviation alarm and indicating lamp
- Break down alarm buzzer
- Thermocouple to connect to outside wiring
- Protection switch for prove the electric leakage
- Protection switch for prove the abnormal voltage
- Teflon hose
Mould Temperature Controller
Features
Safety protecting and indication system:
TTCW Additional Equipment for Option
TTCW Specifications
|
型号M Model |
Unit |
TTCW-1205 |
TTCW-1210 |
TTCW-1220 |
TTCW-1230 |
TTCW-1250 |
TTCW-1610 |
TTCW-1620 |
TTCD-1805 |
TTCW-1815 |
|
Power |
V |
AC220-480V, 3PHASE, 50HZ |
||||||||
|
Operating temperature |
℃ |
40℃-120℃ |
40℃-160℃ |
40℃-180℃ |
||||||
|
Precision of temperature control |
℃ |
±0.1℃ |
||||||||
|
Heat transfer medium |
|
Water |
||||||||
|
Cooling Method |
|
Direct Cooling |
Indirect Cooling |
|||||||
|
Heater power |
KW |
6KW |
9KW |
9KW-24KW |
9KW |
12KW |
6KW |
9KW |
||
|
Pump power |
KW |
0.37KW |
0.75KW |
1.5KW |
2.25KW |
3.75KW |
0.75KW |
1.5KW |
0.5KW |
1.1KW |
|
Replenishing pump power |
KW |
/ |
0.05KW |
|||||||
|
Pumps maximum flow |
50/60Hz L/Min |
35/45 |
35/45 |
35/45 |
165/205 |
200/255 |
130 |
150 |
28 |
50 |
|
Pumps maximum pressure |
50/60Hz |
2.6KG |
3.0KG |
3.5KG |
2.6KG |
3.0KG |
3.5KG |
|||
|
Total power |
KW |
6.5KW |
9.5KW |
10.5-27.8KW |
10-13.7KW |
6.55 |
10.15KW |
|||
|
Cooling water pressure |
Kg/cm2 |
2 |
1-2 |
|||||||
|
Cooling Coupling |
Inch |
1/2”PT |
||||||||
|
Mould Coupling |
Inch/SET |
2 Inlet and Outlet 3/8”PT |
4 Inlet and Outlet 3/8”PT |
4 Inlet and Outlet 1/2”PT or 1 Inlet and Outlet 1”PT |
||||||
|
Dimensions |
mm |
530*270*500 |
530*270*500 |
710*350*645 |
710*350*645 |
870*520*750 |
890*300*656 |
900*450*656 |
850*310*600 |
900*450*700 |
|
Weight |
kg |
45 |
55 |
85 |
90 |
100 |
60 |
75 |
80 |
100 |
