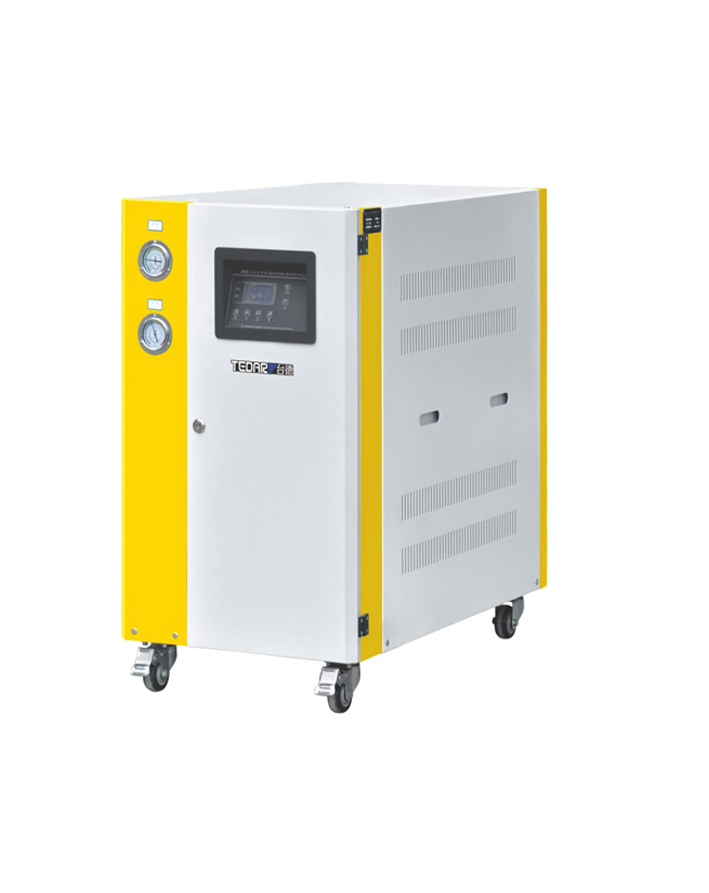

Water-cooled Chillers
-
Water-cooled Chillers
- High-quality compressors: As the heart of the chiller, our company selects brand-new imported high-quality original compressors from Europe, America and Japan. They are equipped with built-in safety protection, low noise, energy-saving and durable, which increases the service life of the equipment.
- Southern/Aoyuan Water Pump: Compact structure, high efficiency, low noise, suitable for slightly corrosive liquids, small installation control, simple installation and disassembly for easy maintenance.
- Emerson expansion Valve: It adopts a balanced valve port design, which can provide stable and precise control under a wide range of loads and at high evaporation temperatures. Permanent use of imported filters and external overheat temperature regulation decoration is a standard configuration for each valve.
- High quality electrical configuration: Bangpu circuit board, Schneider and other high quality electrical equipment, wiring density, small size, light weight, stable operation, low failure rate, durable, easy maintenance.
- Safety protection devices: Compressor delayed start protector, overload protector, high and low pressure protector, temperature control switch, anti-freezing switch, fuse plug, electronic time protection safety valve, compressor overheat protector, compressor frequent start protector and abnormal indicator light.
- Microcomputer control panel: A simple and clear digital LCD display control panel, with functions clearly visible at a glance. The precise digital electronic constant current device can accurately control the temperature of the chiller within ±5℃ to 50℃..
Features:
To ensure the normal operation of the unit, the wiring and installation of various protective devices are reasonable and orderly.
Specifications：
|
Model |
TC-5W |
TC-8W |
TC-10W |
TC-15W |
TC-20W |
TC-25W |
TC-30W |
TC-50W |
||
|
Cooling capacity
|
KW/hr |
50HZ |
14.2 |
24.8 |
31.83 |
46.5 |
65 |
77.5 |
93 |
152 |
|
Kcal |
50HZ |
13750 |
22000 |
27500 |
41250 |
55000 |
68750 |
82500 |
136000 |
|
|
Temperature range |
Adjustable from 5℃ to 50℃ |
|||||||||
|
Power supply |
380V/50HZ |
|||||||||
|
Total power |
KW |
4.17 |
7.85 |
8.25 |
12.75 |
18 |
22.3 |
26.5 |
43 |
|
|
Compressor |
Form |
Fully Hermetic piston/scroll type |
||||||||
|
Power (KW) |
3.75 |
3*2 |
3.75*2 |
3.75*3 |
7.5*2 |
9.37*2 |
7.5*3 |
9.37*4 |
||
|
Condenser |
Form |
High-efficiency red copper external thread copper tube |
||||||||
|
Specification（mm） |
15.88 |
|||||||||
|
Cooling water flow rate（m3/h） |
5.3 |
8.5 |
10.5 |
15 |
21 |
26 |
21 |
47 |
||
|
Evaporator |
Form |
Water tank with high-efficiency purple copper coil |
||||||||
|
Specification（mm） |
15.88 |
|||||||||
|
Chilled water flow rate（m3/h） |
3.2 |
4.5 |
6.2 |
9.3 |
12.3 |
14.7 |
18.4 |
25.4 |
||
|
Circulating pump |
Power (KW) |
0.37 |
0.75 |
0.75 |
1.5 |
3.5 |
3.5 |
4 |
5.5 |
|
|
Head（M） |
20 |
22 |
22 |
20 |
47 |
32 |
30 |
30 |
||
|
Machine size |
L / mm |
850 |
1300 |
1300 |
1600 |
1600 |
1600 |
1800 |
2400 |
|
|
W / mm |
480 |
620 |
620 |
700 |
730 |
730 |
760 |
1000 |
||
|
H / mm |
980 |
1300 |
1300 |
1400 |
1500 |
1500 |
1700 |
1750 |
||
|
Unit weight |
KG |
150 |
290 |
290 |
410 |
500 |
580 |
730 |
910 |
|
