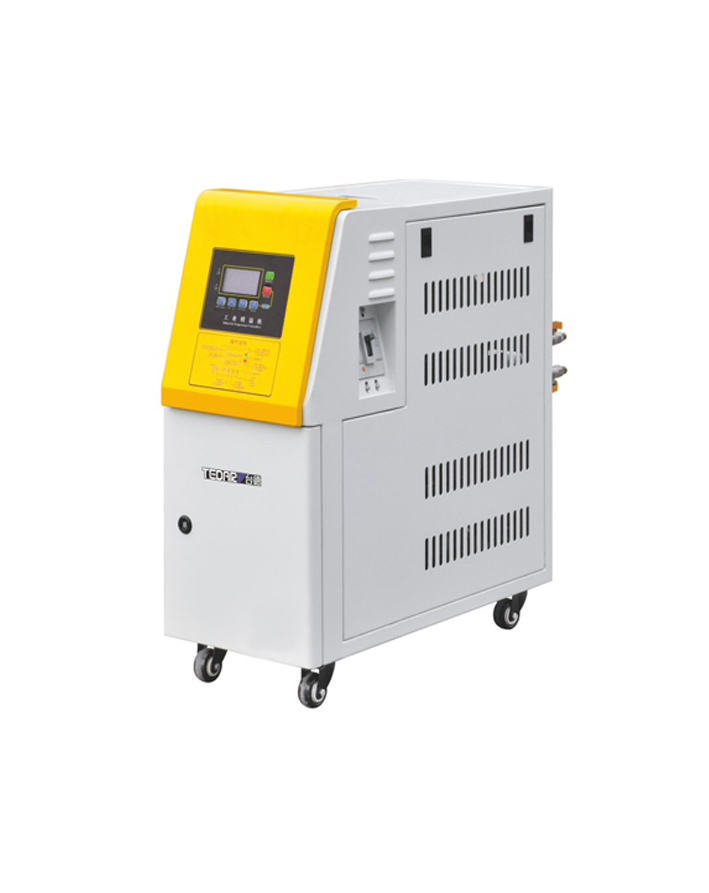

Mould Temperature Controller
Features
Safety protecting and indication system:
TTCO Additional Equipment for Option
TTCO Specifications
型号M Model |
单位 |
TTCO-2005 |
TTCO-2010 |
TTCO-2020 |
TTCO-3010 |
Power |
V |
AC220-480V, 3PHASE, 50HZ |
|||
Operating temperature |
℃ |
50℃-200℃ |
50℃-300℃ |
||
Precision of temperature control |
℃ |
±0.1℃ |
|||
Heat transfer medium |
|
Oil |
|||
Cooling Method |
|
Indirect Cooling |
|||
Cooling power |
Kcal/h |
8000 |
9000 |
9500 |
|
Heater power |
KW |
6KW |
9KW |
12KW |
|
Pump power |
KW |
0.37KW |
0.75KW |
1.5KW |
0.75KW |
Pumps maximum flow |
50Hz/60Hz L/Min |
35/45 |
50/60 |
70/80 |
75/85 |
Pumps maximum pressure |
50Hz/60Hz |
2.6KG |
|||
Oil Tank |
L |
7.5 |
|||
Total power |
KW |
6.5 |
9.5 |
10.5KW |
12.5KW |
Cooling water pressure |
Kg/cm2 |
1-2 |
|||
Cooling Coupling |
Inch |
1/2”PT |
|||
Mould Coupling |
Inch/SET |
2 Inlet and Outlet 3/8”PT |
4 Inlet and Outlet 3/8”PT or 1 Inlet and Outlet 1”PT |
||
Dimensions |
mm |
665*290*610 |
665*290*610 |
710*350*645 |
895*400*750 |
Weight |
kg |
65 |
75 |
100 |
130 |
